Split pressure copper coil solar water heater

FOB Reference Price:Get Latest Price
US $300-700 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Solar collector
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Coated steel
Certification:
CE, EMC, UL
Capacity:
120
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ZILAN
Model Number:
Z-WS002
Tube:
CU/SS-AL/N heat pipe
SupplyAbility
SupplyAbility:
200000 Set/Sets per Year

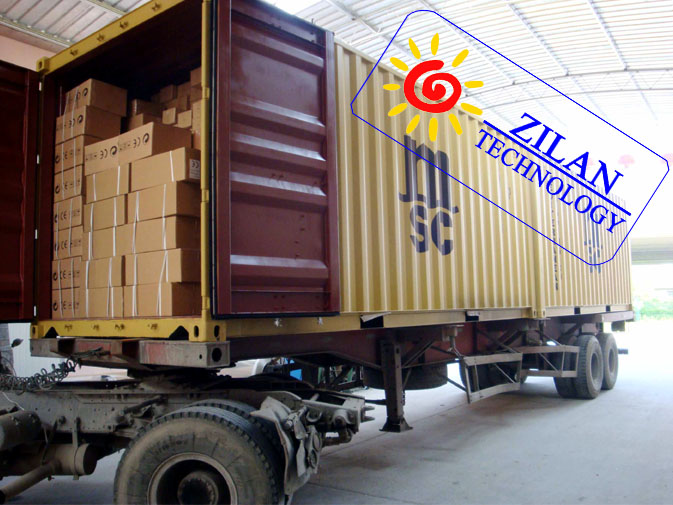

Packaging & Delivery
Packaging Details
Sample packed in wooden box, container order packed in carton with foam inside.
Port
Shanghai/Ningbo
Lead Time :
within 10days

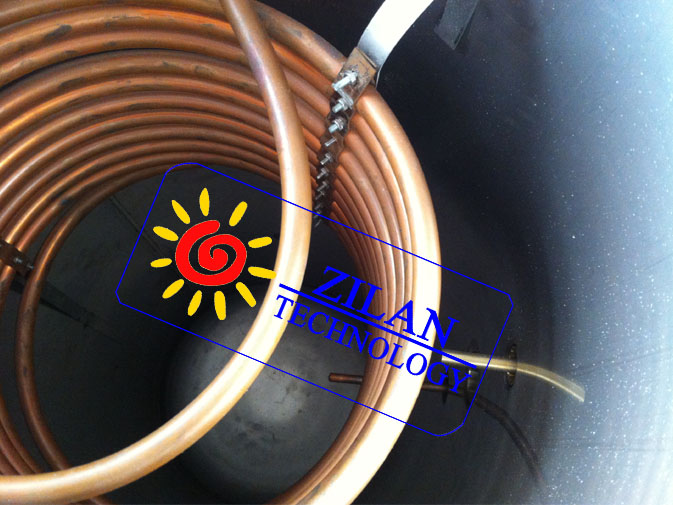

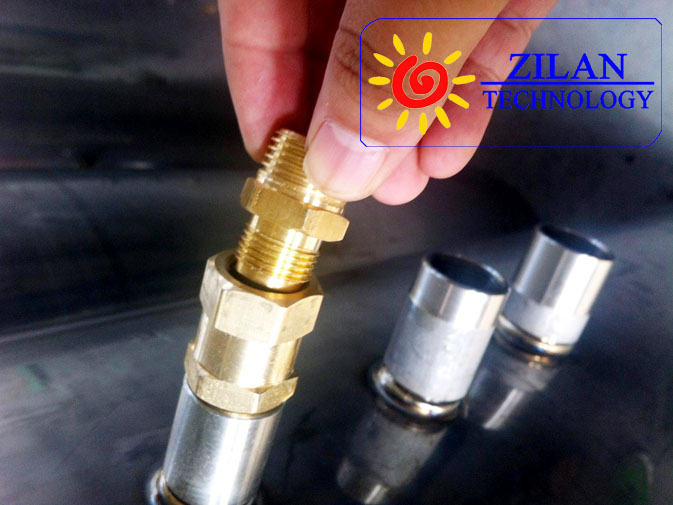

1, Photos :





2, Material:



Solar Collector:

<1>,Vacuum tube: D58-L1800MM, CU/SS-AL/N heat pipe vacuum tube

<2>,Outer manifold material: Aluminum alloy/galvernized steel

<3>,Frame:Galvanized steel with plastic spraying/Aluminum alloy,thickness:1.2-2mm

<4>,Reflector: Stainless steel/Aluminum alloy as option

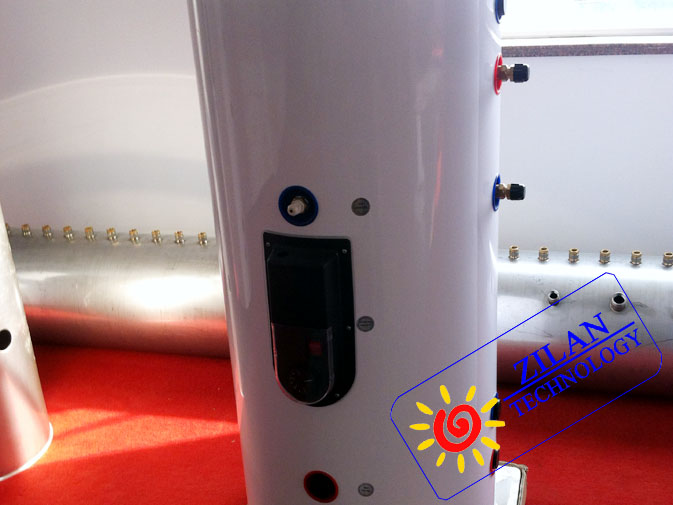

Water tank:

<1>,Inner tank: Imported SUS304-2B food-level stainless steel,thickness: 1.5~2.5MM

<2>,Outer tank: High quality color steel,thickness: 0.45~0.5MM

<3>,Tank cover thickness: 0.5MM

<4>,Insulation layer: 50~100MM polyurethane foam

<5>,Density of tank insulation layer: 35kg/m3

<6>,Rated working pressure: 0.7Mpa

<7>,Attachments: Power controlling box,electric heater,Magnesium bar,P/T valve,pressure reducing valve



Working station:

Expansion case,check valve,circulation pump,solar controller,pressure gauge,safety valve,flow meter, below 250L matched 5L expansion case, above 250L matched 8L.



3, Size range:



ART.NO.TUBE SIZEQTY OF TUBES(pcs)SUGGESTIVE TANK CAPACITY APPLICATION PEOPLE NO.CBM
Z-WS001D58-L1800MM10100L40.56
Z-WS002D58-L1800MM12120L4-50.66
Z-WS003D58-L1800MM15150L60.74
Z-WS004D58-L1800MM20200L80.91
Z-WS005D58-L1800MM25250L101.07
Z-WS006D58-L1800MM30300L121.09
Z-WS007D58-L1800MM40400L161.47
Z-WS008D58-L1800MM50500L202.01
Z-WS009D58-L1800MM60600L242.35
Z-WS010D58-L1800MM70700L282.68
Z-WS011D58-L1800MM80800L322.96
Z-WS012D58-L1800MM90900L363.46
Z-WS013D58-L1800MM1001000L403.87



4, Payment



<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy



5, Certificate





6, Our advantages:



<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions

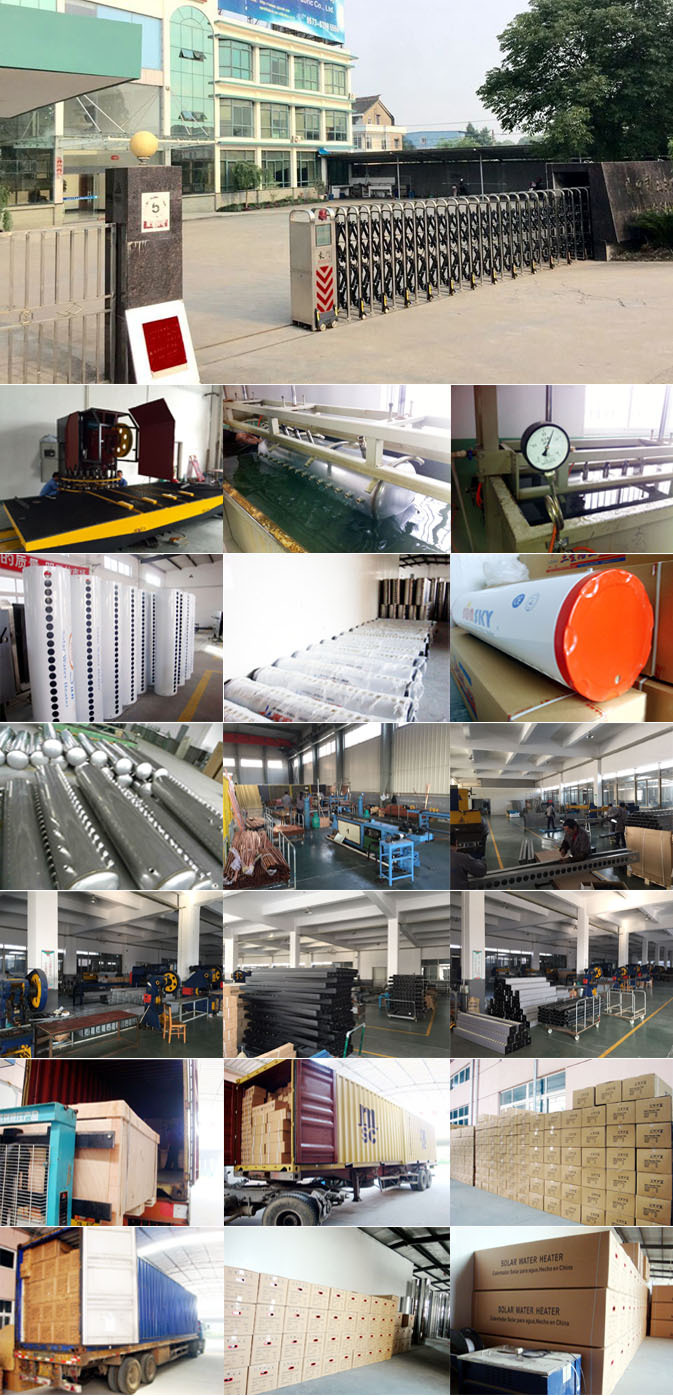

7, Factory photos:





8, Contact:



Lynn Cheung            | Haining Zilan Solar Technolagy Co.,Ltd

Add: No.288, West Qianjiang road, Haining city, Zhejiang province, China

TEL:0086-57387622077   wechat/whatsapp 18868802289

Skype: zhanlevy

LIVING IN GREEN        http://www.zilansolar.com



For more details, pls send email to us, thanks!
