Quick Details

  • Type: Flat-Plate
  • Pressure: Pressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: flat solar panel
  • Connection Type: Split
  • Installation: Freestanding
  • Housing Material: Coated steel
  • Certification: CE, EMC, UL
  • Capacity: 100
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: ZILAN
  • Model Number: Z-WS100F
  • Panel size: 2x1SQ

Packaging & Delivery

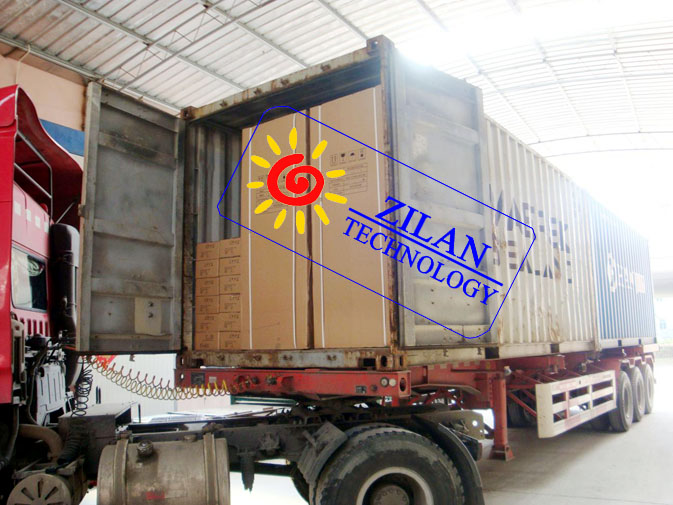

Packaging Details Sample packed in wooden box, container order packed in carton with foam inside.
Delivery Time within 10days

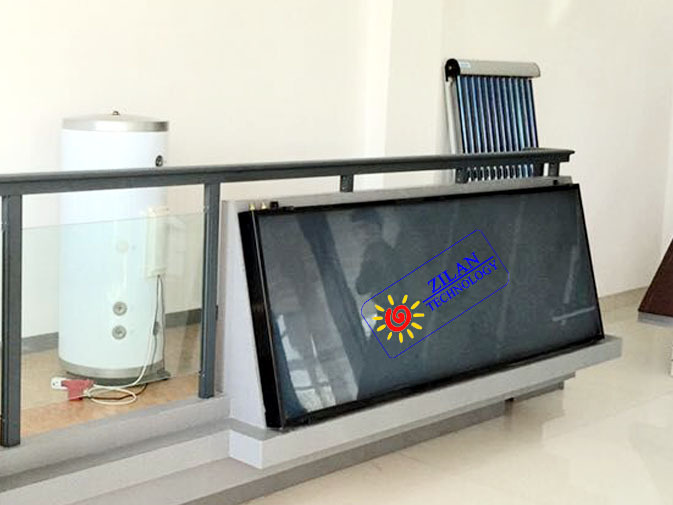

1, Photos :





2, Material:



Flat panel

<1>Cover: Mistlite low iron extra clear tempered glass

<2> Thickness of cover: 3.2mm

<3> Diameter of pipe:

Header pipe: Φ22mm (thickness: 0.8mm)

Risers: Φ10mm (thickness: 0.7mm)

<4> No. of risers:

7 for ZA, 8 for ZB (as your requirement)

<5> Distance between pipes: 120mm

<6> Liquid heat transfer: Anti-freeze fluid(Water-glycol)



Absorber

<1> Surface: Eta plus coating or Black chrome coating

<2> Thickness: 0.12mm - 0.4mm

<3> Absorber emittance:

<4> 5%±2% (Eta Plus) / 10%±2% (Black chrome)

<5> Absorber absorption:

95%±2% (Eta Plus) / 90%±2% (Black chrome)

<6> Connection between pipes: Laser welding



Frame:

<1> Frame material: Anodized aluminum profile

<2>.Insulation & thickness:

PF Resins with aluminum sheet reflector

Rock wool

20mm under the absorber & 20mm around walls

<3> Back plate material: Galvanized steel sheet 0.4mm

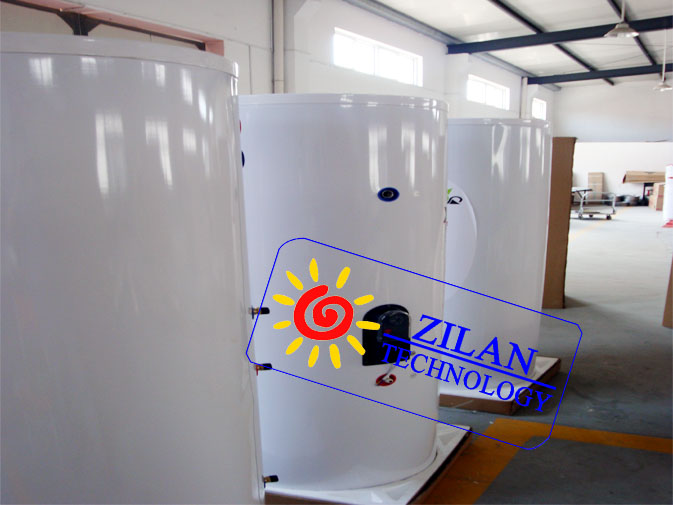

Water tank:

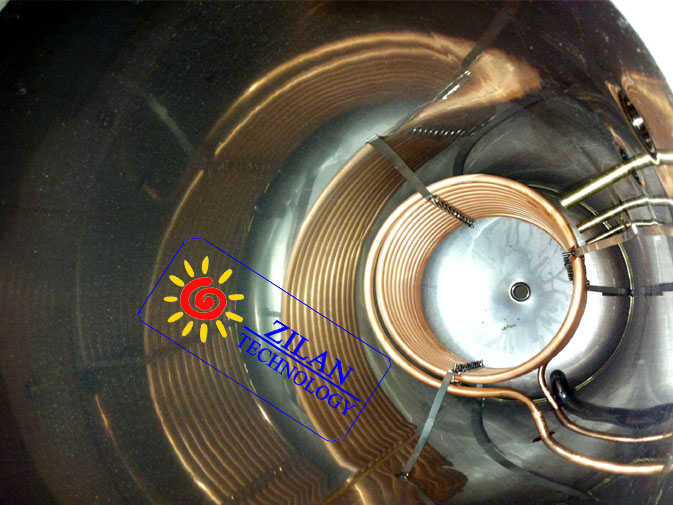

<1> Inner tank: Imported SUS304-2B food-level stainless steel,thickness: 1.5~2.5MM

<2> Outer tank: High quality color steel,thickness: 0.45~0.5MM

<3> Tank cover thickness: 0.5MM

<4> Insulation layer: 50~100MM polyurethane foam

<5> Density of tank insulation layer: 35kg/m3

<6> Rated working pressure: 0.7Mpa

<7> Attachments: Power controlling box,electric heater,Magnesium bar,P/T valve,pressure reducing valve

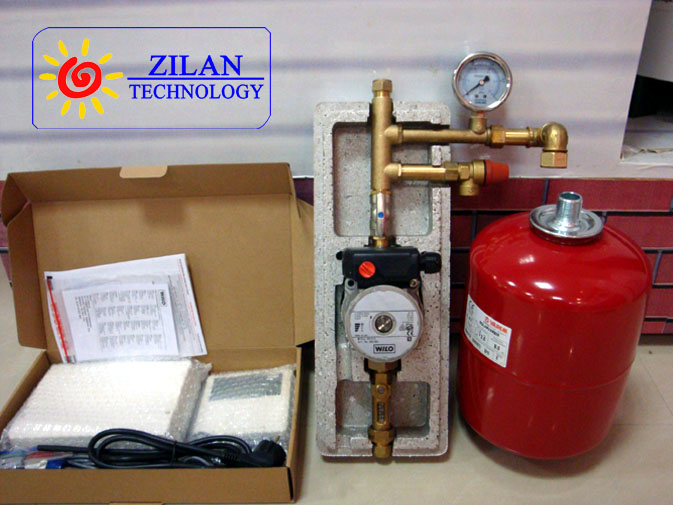

Working station:

Expansion case,check valve,circulation pump,solar controller,pressure gauge,safety valve,flow meter, below 250L matched 5L expansion case, above 250L matched 8L.



3, Size range:



ART.NO.PANEL SIZEPANEL QTY(pcs)SUGGESTIVE TANK CAPACITY APPLICATION PEOPLE NO.CBM
Z-WS100F2 X 1 SQ1100L40.55
Z-WS200F2 X 1 SQ2200L80.9
Z-WS300F2 X 1 SQ3300L121.08
Z-WS400F2 X 1 SQ4400L161.46
Z-WS500F2 X 1 SQ5500L202
Z-WS600F2 X 1 SQ6600L242.34
Z-WS700F2 X 1 SQ7700L282.67
Z-WS800F2 X 1 SQ8800L322.95
Z-WS900F2 X 1 SQ9900L363.45
Z-WS1000F2 X 1 SQ101000L403.86



4, Payment



<1> T/T(wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against B/L copy



5, Certificate





6, Our advantages:



<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions

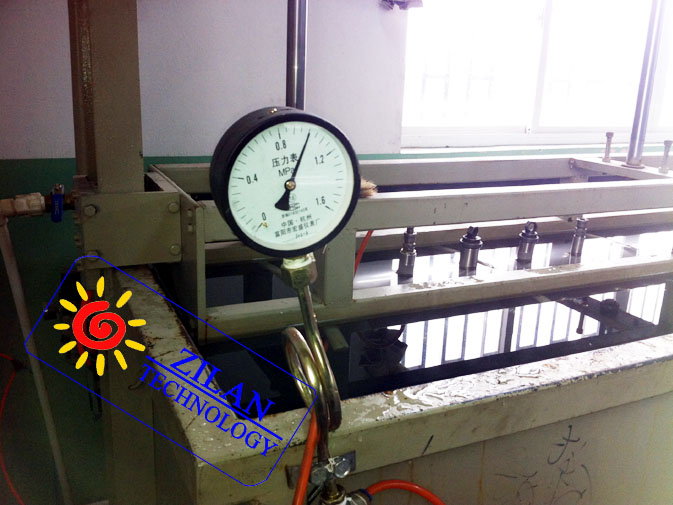

7, Factory photos:





8,Contact:



Mr Krista Zhang



Position: Sales manager

Phone: 86-573-87090146

Mob: 0086-18857389277

Yahoo Messager: Zhangkrista

Skype: Krista025

Website: www.zilansolar.com



For more details, pls send email to us, thanks!
